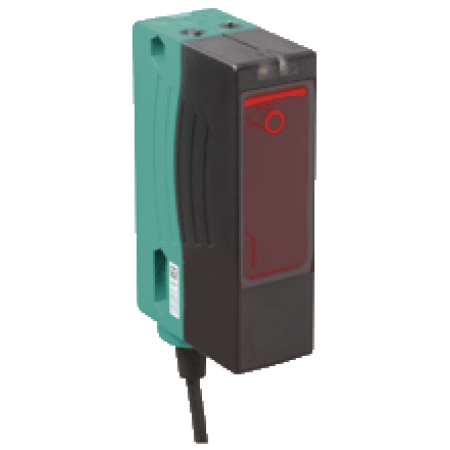

VDM28-8-L1-IO/110/115b/122 Kübik Lazer 200 mm- 8000 mm Algılama 1 x PushPull + 1 x 4..20mA Çıkışlı IO-Link 0,3m Kablolu M12 4 Pin Konnektörlü Mesafe Sensörü

VDM28-8-L1-IO/110/115b/122  Kübik Lazer 200 mm- 8000 mm Algılama 1 x PushPull + 1 x 4..20mA Çıkışlı IO-Link 0,3m Kablolu M12 4 Pin Konnektörlü Mesafe Sensörü
TEKLİF İSTE
VDM28-8-L1-IO/110/115b/122 Kübik Lazer 200 mm- 8000 mm Algılama 1 x PushPull + 1 x 4..20mA Çıkışlı IO-Link 0,3m Kablolu M12 4 Pin Konnektörlü Mesafe Sensörü
0,00TL
KDV Hariç: 0,00TL
  • Stok Yok: Var
  • Marka: Pepperl Fuchs
  • Ürün Kodu: VDM28-8-L1-IO/110/115b/122
Ücretsiz Kargo
10.000TL Üzeri Kargo Bedava
Banka Havalesi
Banka havalesinde ekstra %4 indirim imkanı
Hızlı Teslimat
Maksimum 2 İş Günü İçinde Kargoya Verilir
Güvenli Alışveriş
256BİT SSL Sertifikası ile Koruma
Ürün Açıklaması
Universal distance sensor, measurement to object, IO-Link interface, measuring method PRT, 8 m detection range, red laser light, laser class 1, push-pull output, analog output, fixed cable with M12 plug
General specifications
Measurement range0.2 ... 8 m
Light sourcelaser diode
typ. service life 85,000 h at Ta = +25 °C
Light typemodulated visible red light
Laser nominal ratings
Laser class1
Wave length660 nm
Measuring methodPulse Ranging Technology (PRT)
Diameter of the light spot< 10 mm at a distance of 8 m at 20 °C
Functional safety related parameters
MTTFd200 a
Mission Time (TM)10 a
Diagnostic Coverage (DC)0 %
Indicators/operating means
Function indicator2 LEDs yellow for switching state
Control elements5-step rotary switch for operating modes selection (threshold setting and operating modes)
Control elementsSwitch for setting the threshold values
Electrical specifications
Operating voltage10 ... 30 V DC / when operating in IO-Link mode: 18 ... 30 V
Interface
Interface typeIO-Link
ProtocolIO-Link V1.0
Process data witdh16 bit
Output
Signal outputPush-pull output, short-circuit protected, reverse polarity protected
Compliance with standards and directives
Standard conformity
Product standardEN 60947-5-2
Laser classIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
Mechanical specifications
Housing width25.8 mm
Housing height88 mm
Housing depth54.6 mm
Degree of protectionIP67
Connection300 mm fixed cable with M12 x 1, 4-pin connector
Material
HousingPlastic ABS
Optical facePlastic pane
General specifications
Measurement range0.2 ... 8 m
Light sourcelaser diode
typ. service life 85,000 h at Ta = +25 °C
Light typemodulated visible red light
Laser nominal ratings
Laser class1
Wave length660 nm
Measuring methodPulse Ranging Technology (PRT)
Diameter of the light spot< 10 mm at a distance of 8 m at 20 °C
Functional safety related parameters
MTTFd200 a
Mission Time (TM)10 a
Diagnostic Coverage (DC)0 %
Indicators/operating means
Function indicator2 LEDs yellow for switching state
Control elements5-step rotary switch for operating modes selection (threshold setting and operating modes)
Control elementsSwitch for setting the threshold values
Electrical specifications
Operating voltage10 ... 30 V DC / when operating in IO-Link mode: 18 ... 30 V
Interface
Interface typeIO-Link
ProtocolIO-Link V1.0
Process data witdh16 bit
Output
Signal outputPush-pull output, short-circuit protected, reverse polarity protected
Compliance with standards and directives
Standard conformity
Product standardEN 60947-5-2
Laser classIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
Mechanical specifications
Housing width25.8 mm
Housing height88 mm
Housing depth54.6 mm
Degree of protectionIP67
Connection300 mm fixed cable with M12 x 1, 4-pin connector
Material
HousingPlastic ABS
Optical facePlastic pane
Algılama
Mesafesi1 m ... < 10 m
Arayüz
ArayüzIO-Link
Çıkış
AnalogAnalog
SwitchingSwitching
Gövde
KübikKübik
Modül
TipiLaser
Montaj
ŞekliKablolu M12 Soketli
Voltaj
GirişiDC
