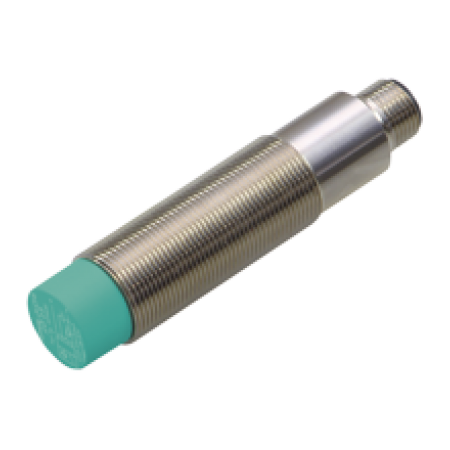

Inductive analog sensor ANT2-8 2084/85 V1

Inductive analog sensor ANT2-8 2084/85 V1
Teklif isteyiniz
Inductive analog sensor ANT2-8 2084/85 V1
  • Stok: İletişime Geçin
  • Model: ANT2-8 2084/85 V1
Fiyat Sorunuz
Vergiler Hariç: 0,00$
General specifications
Output typeAnalog current output or analog voltage output
Installationnon-flush
Output polarityDC
Measurement range2 ... 8 mm
Output type3-wire
Nominal ratings
Operating voltage18 ... 30 V
Output signal0 ... 20 mA 0 ... 10 V
Reverse polarity protectionreverse polarity protected
Linearity error± 0.5 %
Temperature drift≤ 0.2 % / K v.E.
Repeat accuracy< 0.02 mm
No-load supply current≤ 15 mA
Load resistorvoltage output: ≥ 4,7 kΩ
current output: ≤ 200 Ω
Approvals and certificates
CCC approvalCCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature-25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection typeM12 x 1
Housing materialbrass, nickel-plated
Sensing facePBT
Degree of protectionIP67
Gövde
MateryaliMetal
Silindirik
GövdeM18
Kontrol
ÇıkışAnalog Akım Çıkış
Voltaj
GirişiDC
Algılama
Mesafesi5 mm ... < 10 mm
Bağlantı.
Prensibi4 Tel
ŞekliM12 Soketli
Montaj
ŞekliÇıkıntılı Montaj
