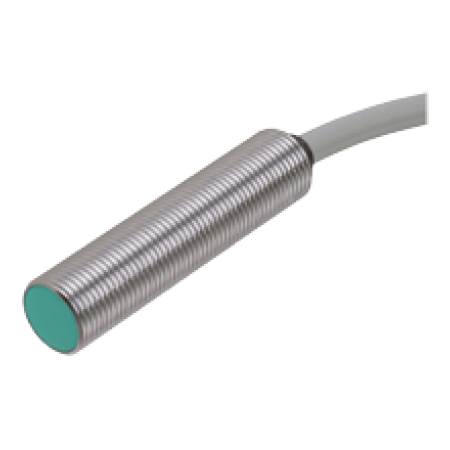

Inductive analog sensor 3RG4612-0NB00-PF

Inductive analog sensor 3RG4612-0NB00-PF
Teklif isteyiniz
Inductive analog sensor 3RG4612-0NB00-PF
  • Stok: İletişime Geçin
  • Model: 3RG4612-0NB00-PF
Fiyat Sorunuz
Vergiler Hariç: 0,00$
Ürün Açıklaması
Inductive analog sensor with current output or voltage output
General specifications
Output typeAnalog current output or analog voltage output
Installationquasi flush
Output polarityDC
Measurement range0 ... 6 mm
Output type4-wire
Nominal ratings
Installation conditions
A2 mm
B6 mm
C18 mm
F30 mm
Operating voltage10 ... 30 V , residual ripple 20 % UB
Limit frequency (3dB)1000 Hz
Reverse polarity protectionyes
Short-circuit protectionyes
Repeat accuracy0 ... 10 µm
No-load supply current≤ 10 mA
Time delay before availability≤ 50 ms
Analog output
Output type1 ... 5 mA / 0 ... 5 V
Load resistorCurrent output A2: ≤ 1000 Ω (UB = 10 V) / ≤ 5000 Ω (UB = 30 V)
Load currentVoltage output A1: ≤ 10 mA
Standard conformity
EMC in accordance withIEC 60947-5-2: 1kV
IEC 61000-4-2: Level 2
IEC 61000-4-3: Level 3
IEC 61000-4-4: Level 2
Shock resistanceIEC 60947-5-2/7.4
Ambient conditions
Ambient temperature-25 ... 70 °C (-13 ... 158 °F)
Temperature drift≤ ±5% (0 ... 70 °C)
≤ ±10% (-25 ... 0°C)
Mechanical specifications
Connection typecable PUR 4 x 0.25 mm2/128 x 0.05 mm ∅ , L = 2 m
Housing materialchromium plated brass
Sensing facePBT
Degree of protectionIP67
Mass77 g
General specifications
Output typeAnalog current output or analog voltage output
Installationquasi flush
Output polarityDC
Measurement range0 ... 6 mm
Output type4-wire
Nominal ratings
Installation conditions
A2 mm
B6 mm
C18 mm
F30 mm
Operating voltage10 ... 30 V , residual ripple 20 % UB
Limit frequency (3dB)1000 Hz
Reverse polarity protectionyes
Short-circuit protectionyes
Repeat accuracy0 ... 10 µm
No-load supply current≤ 10 mA
Time delay before availability≤ 50 ms
Analog output
Output type1 ... 5 mA / 0 ... 5 V
Load resistorCurrent output A2: ≤ 1000 Ω (UB = 10 V) / ≤ 5000 Ω (UB = 30 V)
Load currentVoltage output A1: ≤ 10 mA
Standard conformity
EMC in accordance withIEC 60947-5-2: 1kV
IEC 61000-4-2: Level 2
IEC 61000-4-3: Level 3
IEC 61000-4-4: Level 2
Shock resistanceIEC 60947-5-2/7.4
Ambient conditions
Ambient temperature-25 ... 70 °C (-13 ... 158 °F)
Temperature drift≤ ±5% (0 ... 70 °C)
≤ ±10% (-25 ... 0°C)
Mechanical specifications
Connection typecable PUR 4 x 0.25 mm2/128 x 0.05 mm ∅ , L = 2 m
Housing materialchromium plated brass
Sensing facePBT
Degree of protectionIP67
Mass77 g
Gövde
MateryaliMetal
ŞekliSilindirik
Silindirik
GövdeM12
Kontrol
ÇıkışAnalog Akım Çıkış
Voltaj
GirişiDC
Algılama
Mesafesi3 mm ... < 5 mm
Bağlantı.
Prensibi4 Tel
ŞekliKablolu
Montaj
ŞekliGömülebilir Montaj
