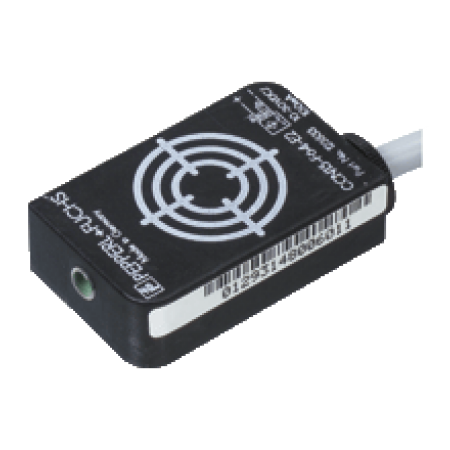

CBN12-F64-E2 Kübik Plastik Gövde, PNP NO 12mm Algılama, 2m Kablolu, Çıkıntılı Montaj, Kapasitif Sensör

CBN12-F64-E2  Kübik Plastik Gövde, PNP NO 12mm Algılama, 2m Kablolu, Çıkıntılı Montaj, Kapasitif Sensör
Teklif isteyiniz
CBN12-F64-E2 Kübik Plastik Gövde, PNP NO 12mm Algılama, 2m Kablolu, Çıkıntılı Montaj, Kapasitif Sensör
  • Stok: Stok var
  • Model: CBN12-F64-E2
Fiyat Sorunuz
Vergiler Hariç: 0,00$
General specifications
Switching functionNormally open (NO)
Output typePNP
Rated operating distance12 mm
Installationnon-flush
Output polarityDC
Assured operating distance0 ... 9.5 mm
Output type3-wire
Nominal ratings
Installation conditions
B15 mm
C30 mm
F45 mm / 60 mm
Operating voltage10 ... 30 V DC
Switching frequency0 ... 20 Hz
Hysteresis1 ... 10 typ. 5 %
Reverse polarity protectionreverse polarity protected
Short-circuit protectionpulsing
Voltage drop≤ 2 V
Operating current0 ... 100 mA
Off-state current0 ... 50 µA typ. 5 µA
No-load supply current≤ 15 mA
Switching state indicatorLED, yellow
Functional safety related parameters
MTTFd1370 a
Mission Time (TM)20 a
Diagnostic Coverage (DC)0 %
Compliance with standards and directives
Standard conformity
StandardsEN 60947-5-2:2007
EN 60947-5-2/A1:2012
IEC 60947-5-2:2007
IEC 60947-5-2 AMD 1:2012
Approvals and certificates
UL approvalcULus Listed, General Purpose
CSA approvalcCSAus Listed, General Purpose
CCC approvalCCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature-25 ... 70 °C (-13 ... 158 °F)
Storage temperature-40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection typecable PUR , 3.1 m
Core cross-section0.34 mm2
Housing materialPBT
Sensing facePBT
Degree of protectionIP67
Tightening torque, housing screws≤ 2 Nm
NoteScrew-in depth of housing screws, max. 8 mm
General information
NoteScrew-in depth of housing screws, max. 8 mm
Technical informationDilDosya TipiDosya Boyutu
Installation conditionsENGPDF219 KB
EinbaubedingungenGERPDF345 KB
Documents
EPLAN macro EMA / EPLAN Makro EMAALLEMA91 KB
Technical informationDilDosya TipiDosya Boyutu
Installation conditionsENGPDF219 KB
EinbaubedingungenGERPDF345 KB
Documents
EPLAN macro EMA / EPLAN Makro EMAALLEMA91 KB
Gövde
KübikKübik
Kübik Gövde
25x40x12 mm (F64)25x40x12 mm (F64)
Kontrol Çıkışı
PNPPNP
Voltaj
DCDC
Algılama Mesafesi.
10 mm ... < 20 mm10 mm ... < 20 mm
Bağlantı Şekli
KabloluKablolu
Bağlantı Prensibi
3 Tel3 Tel
Gövde Materyali
PlastikPlastik
Montaj
Çıkıntılı MontajÇıkıntılı Montaj
Çıkış Fonksiyonu
(NO)(NO)
